General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

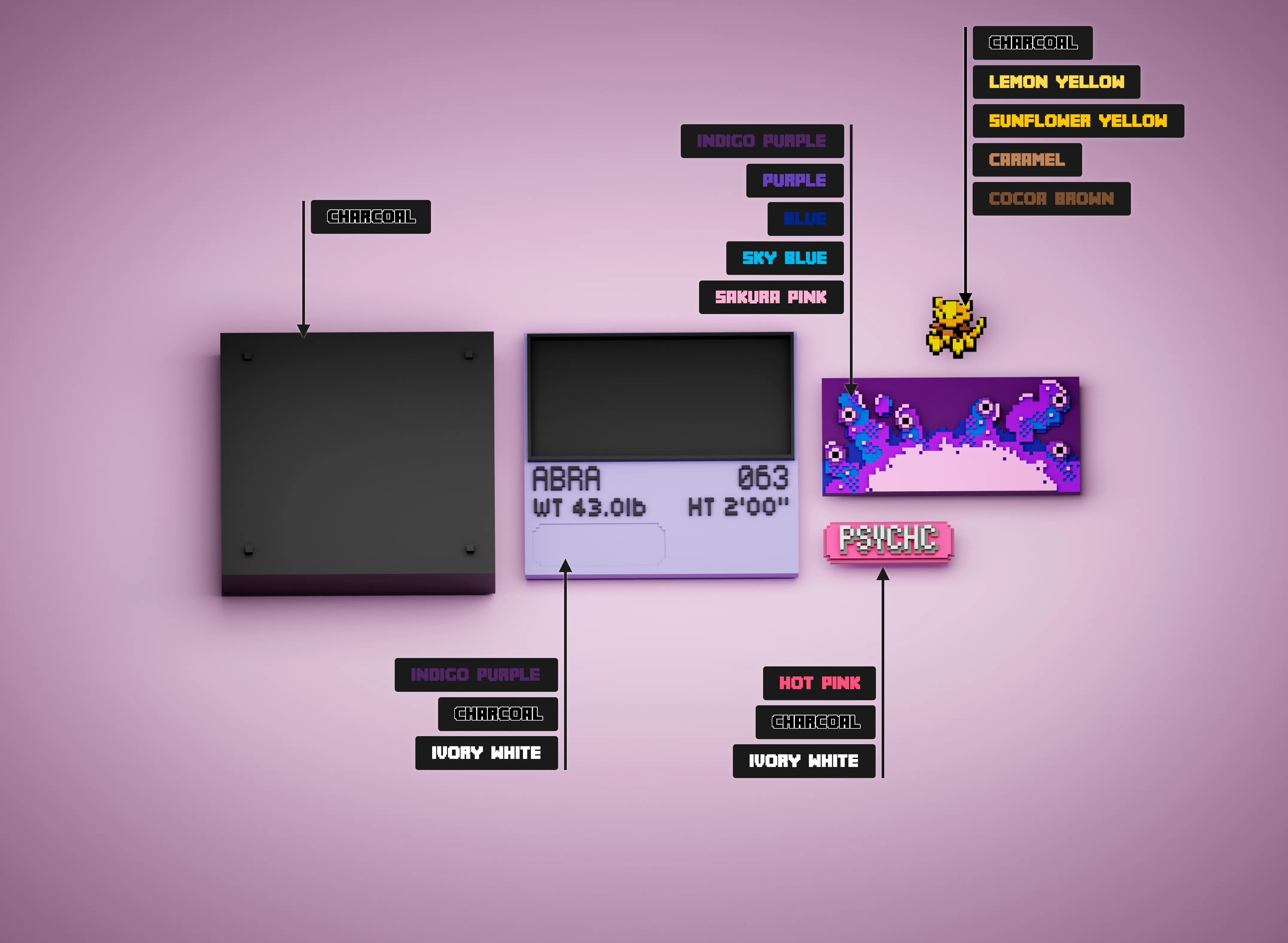

AMS Slot Optimization (5 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Lemon Yellow	6
2	PLA Matte Cocoa Brown	—	—
3	PLA Matte Caramel	—	—
4	PLA Basic Sunflower Yellow	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Psychic.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Indigo Purple
9	0.9mm	Swap to	Basic Blue
14	1.4mm	Swap to	Matte Sky Blue
18	1.8mm	Swap to	Matte Sakura Pink
20	2.0mm	Swap to	Basic Purple
26	2.6mm	Final swap to	Matte Sakura Pink

---

Part 2: Type (Psychic.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Hot Pink
7	0.7mm	Swap to	Matte Charcoal
8	0.8mm	Swap to	Basic Hot Pink
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Indigo Purple
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 4: Pokemon (063 Abra.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Matte Cocoa Brown
9	0.9mm	Swap to	Matte Caramel
12	1.2mm	Swap to	Basic Sunflower Yellow
15	1.5mm	Final swap to	Matte Lemon Yellow
