General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (5 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Scarlet Red	PLA Basic Bambu Green	14
2	PLA Matte Charcoal	—	—
3	PLA Matte Sky Blue	—	—
4	PLA Matte Ivory White	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slot 1
2. Set swap layers at Z=1.4mm (Layer 14)
3. Replace the filament in the shared slot without pausing the print.

---

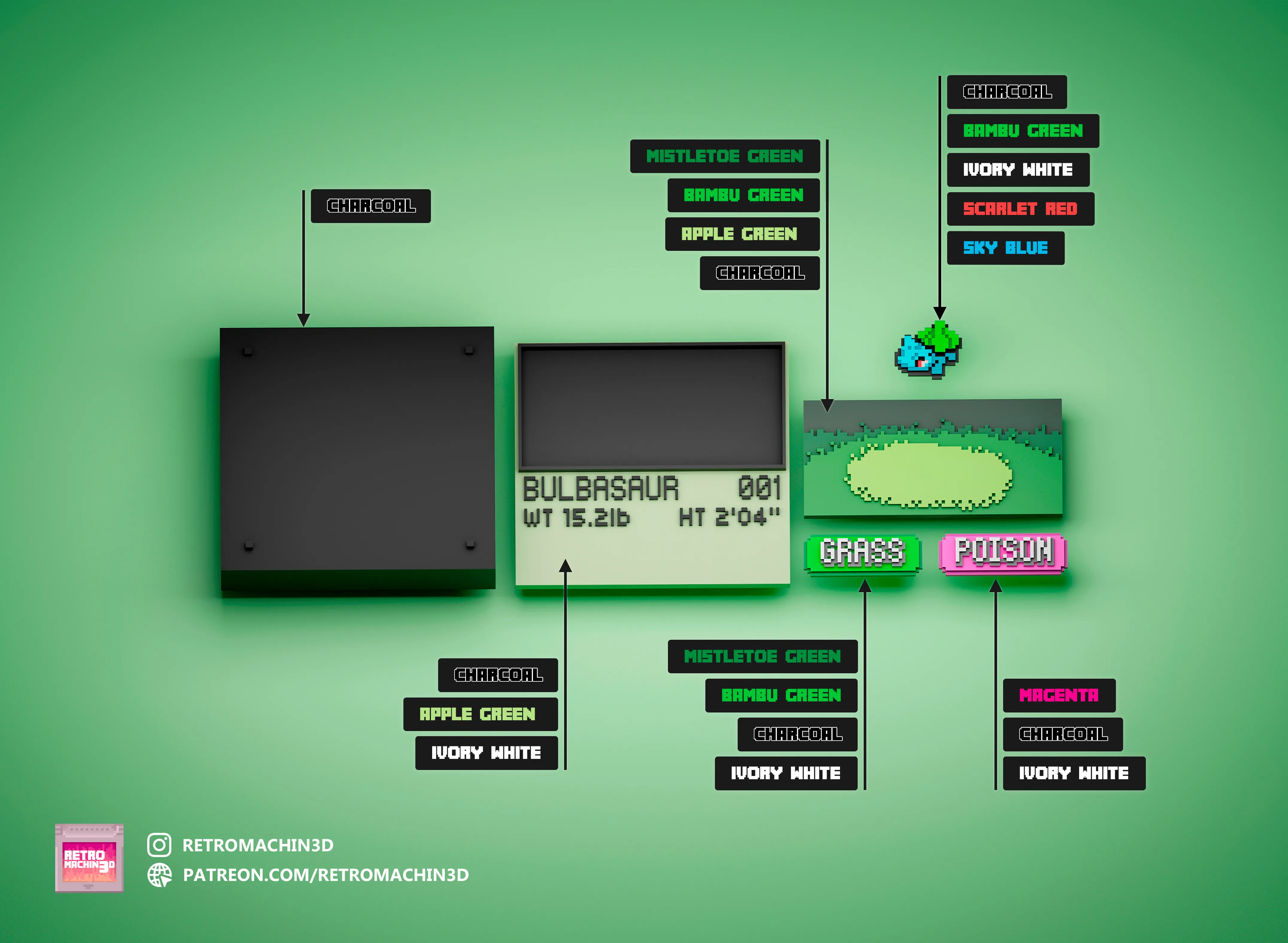

Part Printing Guides

Part 1: Grass Background (BG Grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal (11101)
8	0.8mm	Swap to	Basic Mistletoe Green (10502)
15	1.5mm	Swap to	Basic Bambu Green (10501)
22	2.2mm	Final swap to	Matte Apple Green (11502)

---

Part 2: Grass Type (grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Mistletoe Green (10502)
10	1.0mm	Swap to	Basic Bambu Green (10501)
16	1.6mm	Swap to	Matte Charcoal (11101)
23	2.3mm	Final swap to	Matte Ivory White (11100)

---

Part 3: Poison Type (Poison.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Magenta (10202)
7	0.7mm	Swap to	Matte Charcoal (11101)
9	0.9mm	Swap back to	Basic Magenta (10202)
16	1.6mm	Swap to	Matte Charcoal (11101)
23	2.3mm	Final swap to	Matte Ivory White (11100)

---

Part 4: Info Screen (001 InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Apple Green (11502)
24	2.4mm	Swap to	Matte Ivory White (11100)
25	2.5mm	Final swap to	Matte Charcoal (11101)

---

Part 5: Bulbasaur (001 Bulbasaur.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal (11101)
7	0.7mm	Swap to	Matte Ivory White (11100)
11	1.1mm	Swap to	Matte Scarlet Red (11200)
14	1.4mm	Swap back to	Matte Charcoal (11101)
15	1.5mm	Swap to	Matte Sky Blue (11603)
20	2.0mm	Swap to	Matte Charcoal (11101)
21	2.1mm	Swap to	Basic Bambu Green (10501)
23	2.3mm	Swap to	Matte Ivory White (11100)
24	2.4mm	Final swap to	Basic Bambu Green (10501)
