General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

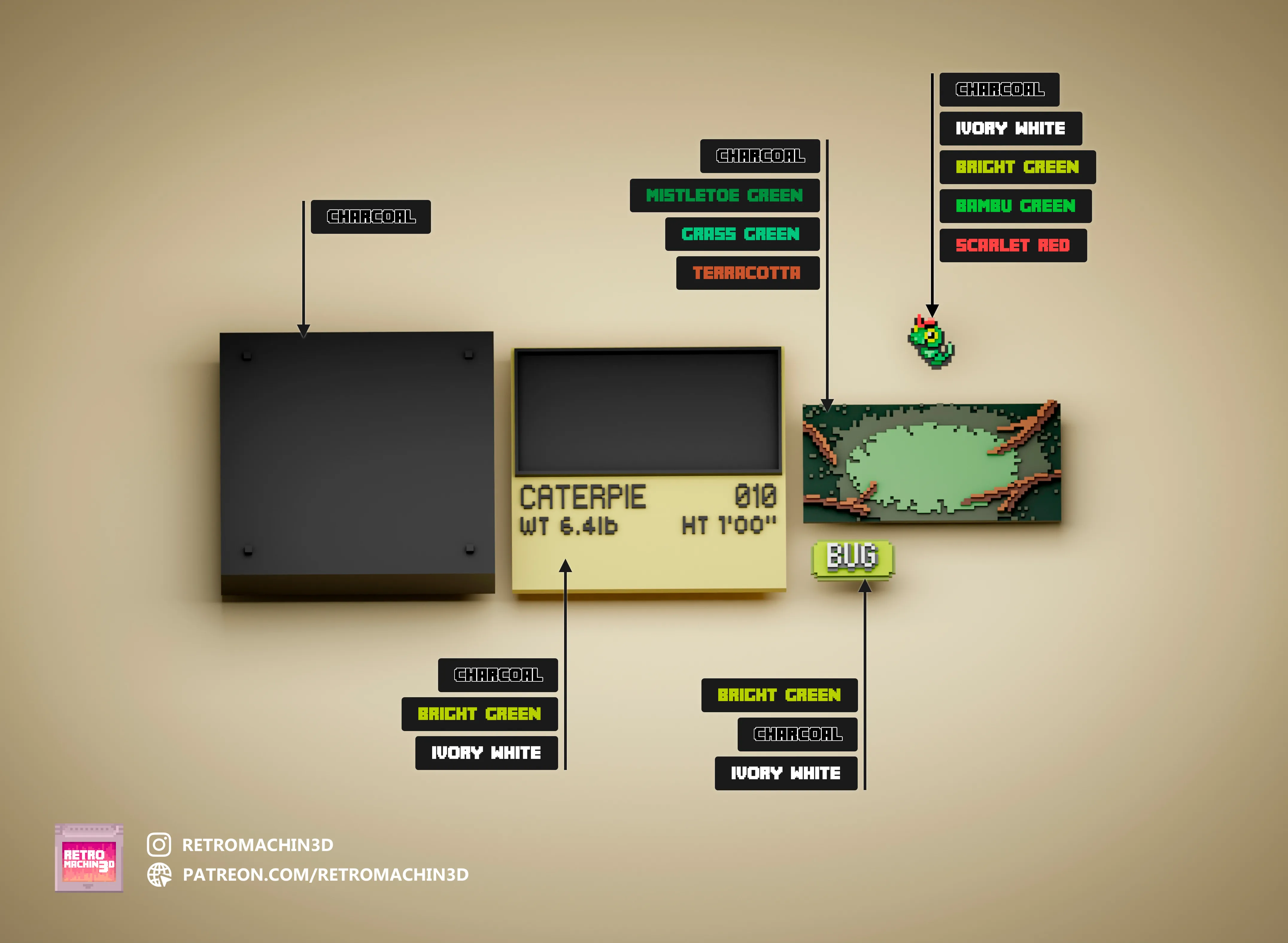

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (5 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Terracotta	8
2	PLA Basic Bambu Green	—	—
3	PLA Matte Ivory White	—	—
4	PLA Basic Bright Green	—	—

Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slot 1
2. Set swap layers at Z=0.8mm (Layer 8)
3. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Bug.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
14	1.4mm	Swap to	Basic Mistletoe Green
15	1.5mm	Swap to	Matte Charcoal
18	1.8mm	Swap to	Matte Grass Green
20	2.0mm	Swap to	Matte Charcoal
25	2.5mm	Final swap to	Matte Terracotta

---

Part 2: Type (Bug.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Bright Green
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Basic Bright Green
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Bright Green
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 4: Pokemon (010 Caterpie.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
8	0.8mm	Swap to	Basic Bambu Green
13	1.3mm	Swap to	Matte Ivory White
14	1.4mm	Swap to	Basic Bambu Green
17	1.7mm	Swap to	Matte Ivory White
20	2.0mm	Swap to	Basic Bright Green
23	2.3mm	Swap to	Matte Terracotta
25	2.5mm	Swap to	Matte Ivory White
26	2.6mm	Final swap to	Matte Terracotta
