General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (6 Colors in 4 Slots)

Shared Slot Configuration for Background

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Lilac Purple	PLA Matte Ivory White	7
2	PLA Matte Sakura Pink	PLA Matte Sky Blue	12
3	PLA Basic Hot Pink	—	—
4	PLA Matte Ice Blue	—	—

Shared Slot Configuration for Pokemon

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Basic Dark Gray	PLA Matte Sakura Pink	9
2	PLA Matte Charcoal	—	—
3	PLA Matte Ivory White	—	—
4	PLA Matte Caramel	—	—

Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

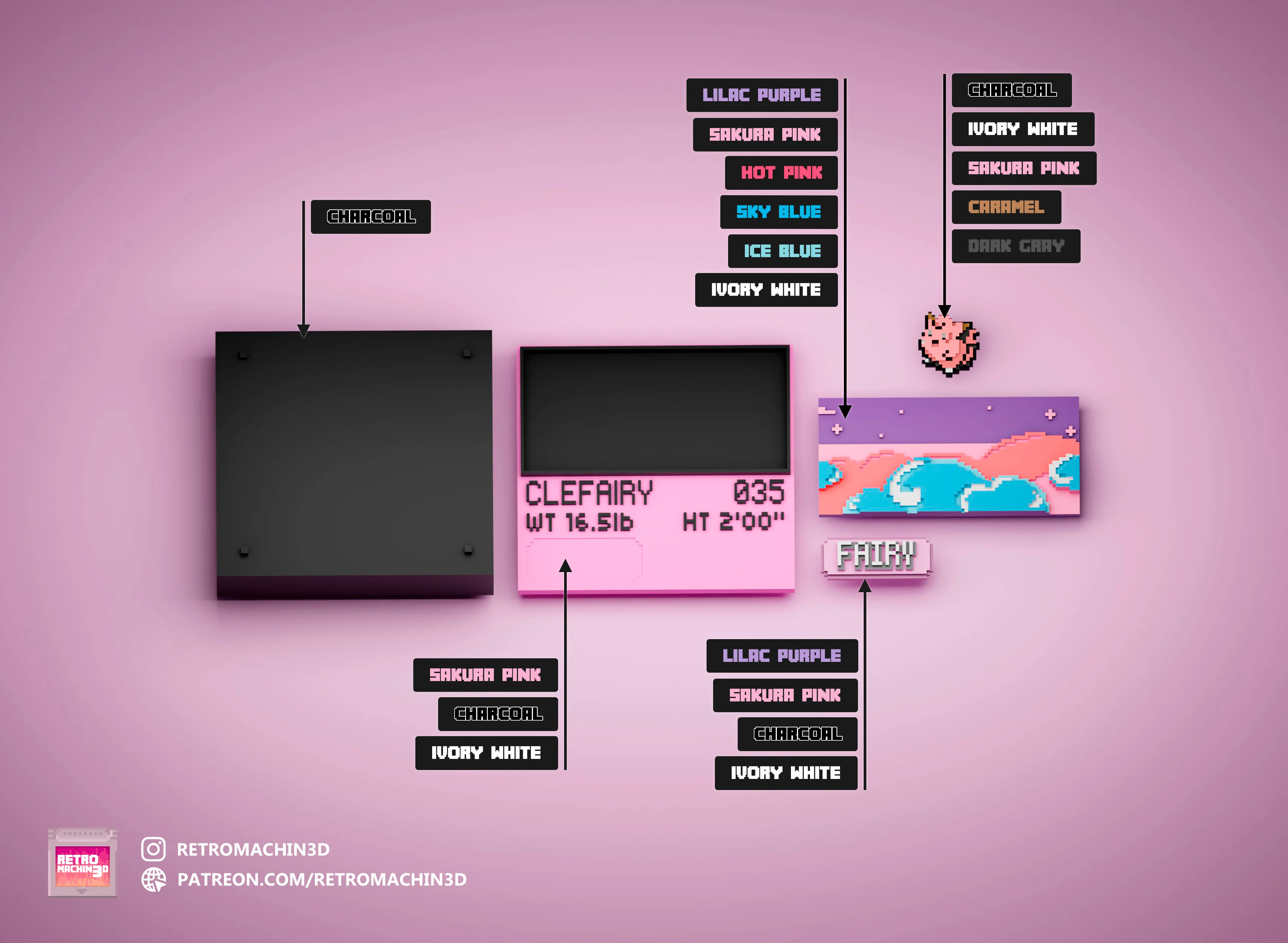

Part Printing Guides

Part 1: Background (BG Fairy.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lilac Purple
7	0.7mm	Swap to	Matte Sakura Pink
12	1.2mm	Swap to	Basic Hot Pink
17	1.7mm	Swap to	Matte Ice Blue
22	2.2mm	Swap to	Matte Ivory White
28	2.8mm	Final swap to	Matte Sky Blue

---

Part 2: First Type (Fairy.stl`)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lilac Purple
10	1.0mm	Swap to	Matte Sakura Pink
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Sakura Pink
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 4: Pokemon (035 Clefairy.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Basic Dark Gray
9	0.9mm	Swap to	Matte Ivory White
13	1.3mm	Swap to	Matte Caramel
16	1.6mm	Swap to	Matte Charcoal
17	1.7mm	Final swap to	Matte Sakura Pink
