General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (7 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Basic Dark Gray	6
2	PLA Matte Dark Brown	PLA Matte Nardo Gray	12
3	PLA Matte Latte Brown	PLA Basic Light Gray	13
4	PLA Matte Sakura Pink	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Ground.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Sky Blue
9	0.9mm	Swap to	Matte Dark Brown
19	1.9mm	Swap to	Matte Caramel
27	2.7mm	Final swap to	Matte Latte Brown

---

Part 2: First Type (Ground.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Caramel
10	1.0mm	Swap to	Matte Latte Brown
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Desert Tan
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

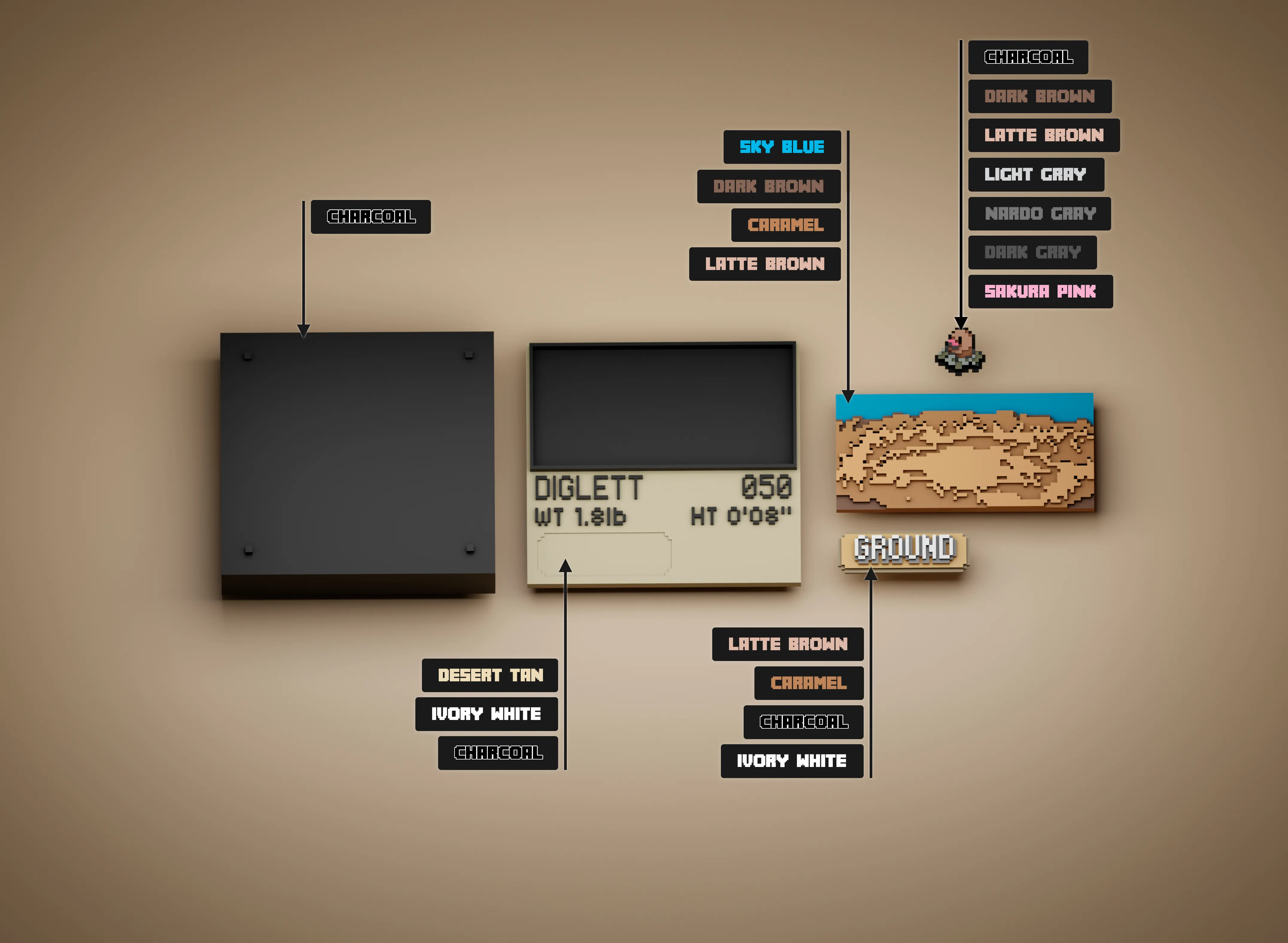

Part 4: Pokemon (050 Diglett.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Matte Dark Brown
12	1.2mm	Swap to	Matte Latte Brown
13	1.3mm	Swap to	Matte Sakura Pink
16	1.6mm	Swap to	Basic Dark Gray
20	2.0mm	Swap to	Matte Nardo Gray
25	2.5mm	Final swap to	Basic Light Gray
