General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (7 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Sakura Pink	7
2	PLA Matte Ivory White	PLA Matte Marine Blue	10
3	PLA Matte Indigo Purple	PLA Matte Dark Blue	13
4	PLA Matte Lilac Purple	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

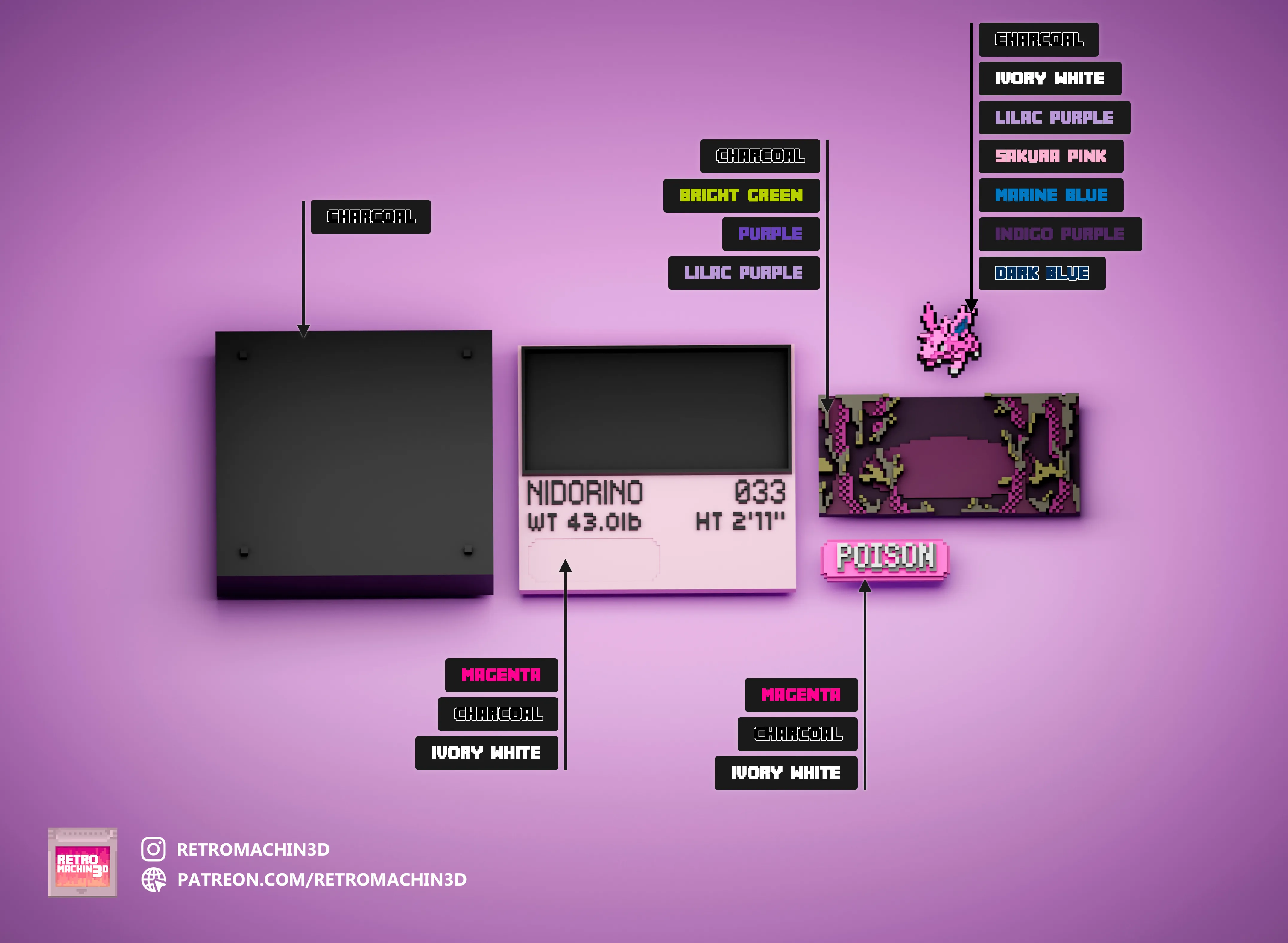

Part Printing Guides

Part 1: Background (BG Poison.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
13	1.3mm	Swap to	Basic Purple
14	1.4mm	Swap to	Basic Indigo Purple
18	1.8mm	Swap to	Basic Purple
23	2.3mm	Swap to	Matte Charcoal
26	2.6mm	Swap to	Basic Bright Green
27	2.7mm	Swap to	Matte Charcoal
30	3.0mm	Final swap to	Basic Bright Green

---

Part 2: First Type (Poison.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Magenta
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Basic Magenta
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Magenta
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

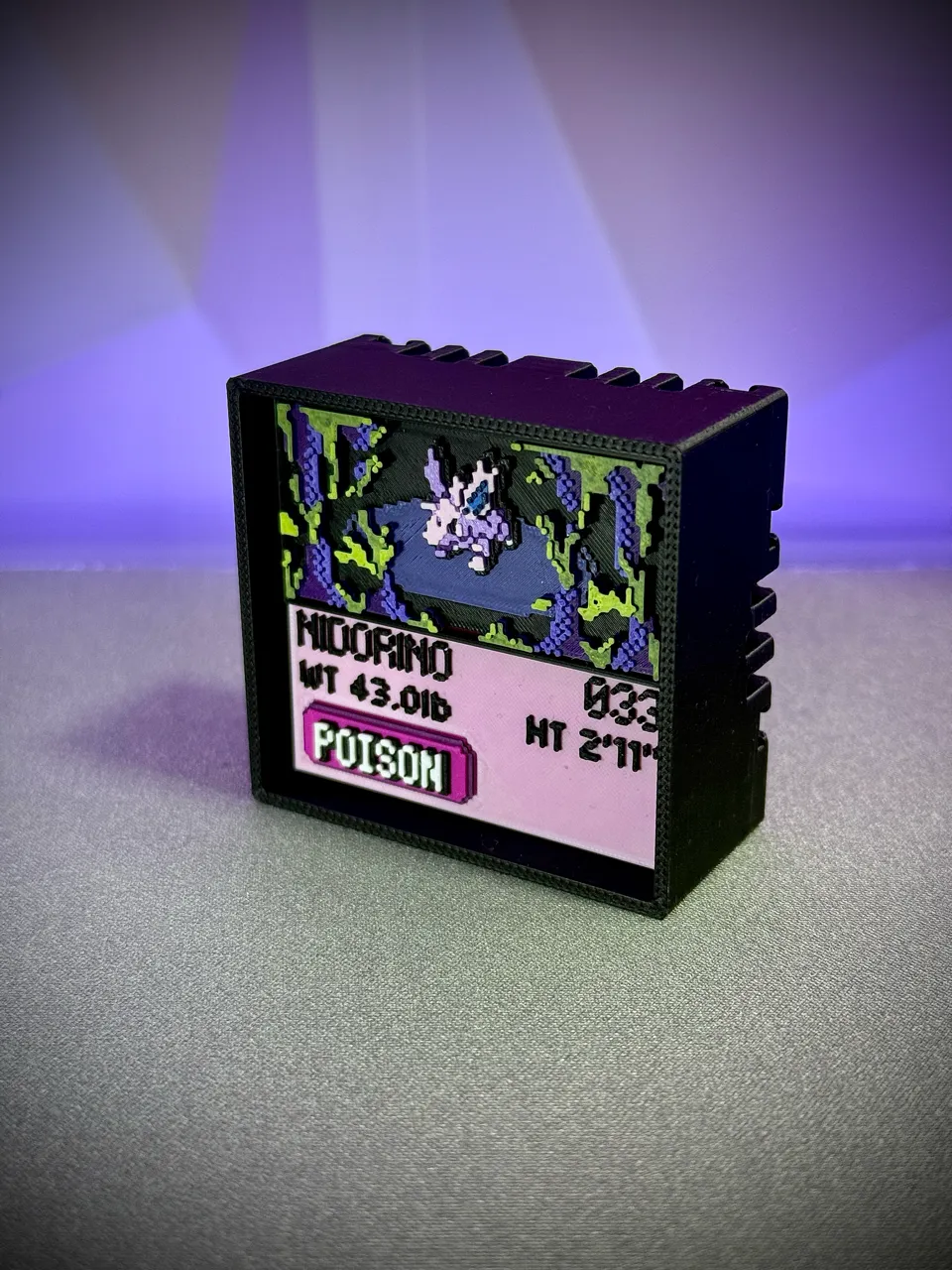

Part 4: Pokemon (033 Nidorino.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Matte Ivory White
10	1.0mm	Swap to	Matte Indigo Purple
13	1.3mm	Swap to	Matte Lilac Purple
17	1.7mm	Swap to	Matte Sakura Pink
20	2.0mm	Swap to	Matte Marine Blue
22	2.2mm	Final swap to	Matte Dark Blue
