General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

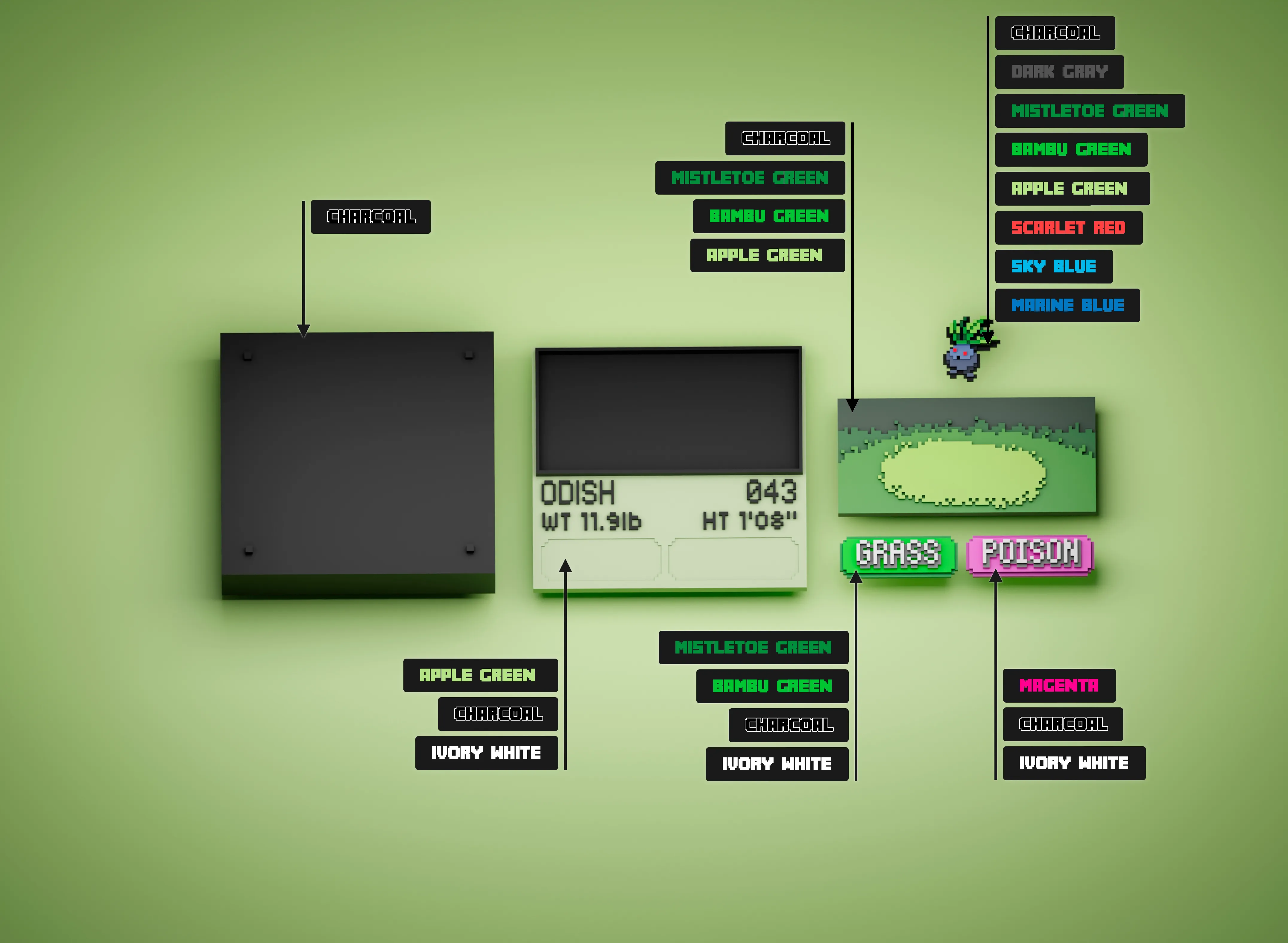

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (8 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Scarlet Red	6
2	PLA Basic Dark Gray	PLA Basic Mistletoe Green	10
3	PLA Matte Marine Blue	PLA Basic Bambu Green	13
4	PLA Matte Sky Blue	PLA Matte Apple Green	16
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
8	0.8mm	Swap to	Basic Mistletoe Green
15	1.5mm	Swap to	Basic Bambu Green
22	2.2mm	Final swap to	Matte Apple Green

---

Part 2: First Type (Grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Mistletoe Green
10	1.0mm	Swap to	Basic Bambu Green
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Second Type (Poison.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Magenta
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Basic Magenta
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Apple Green
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 5: Pokemon (043 Oddish.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Basic Dark Gray
10	1.0mm	Swap to	Matte Marine Blue
13	1.3mm	Swap to	Matte Sky Blue
16	1.6mm	Swap to	Matte Scarlet Red
19	1.9mm	Swap to	Basic Mistletoe Green
23	2.3mm	Swap to	Basic Bambu Green
26	2.6mm	Final swap to	Matte Apple Green
