General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (6 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Mandarin Orange	7
2	PLA Matte Scarlet Red	PLA Matte Ivory White	10
3	PLA Matte Desert Tan	—	—
4	PLA Matte Terracotta	—	—

Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slot 1 and 2
2. Set swap layers at Z=0.7mm (Layer 7) and Z=1.0mm (Layer 10)
3. Replace the filament in the shared slot without pausing the print.

---

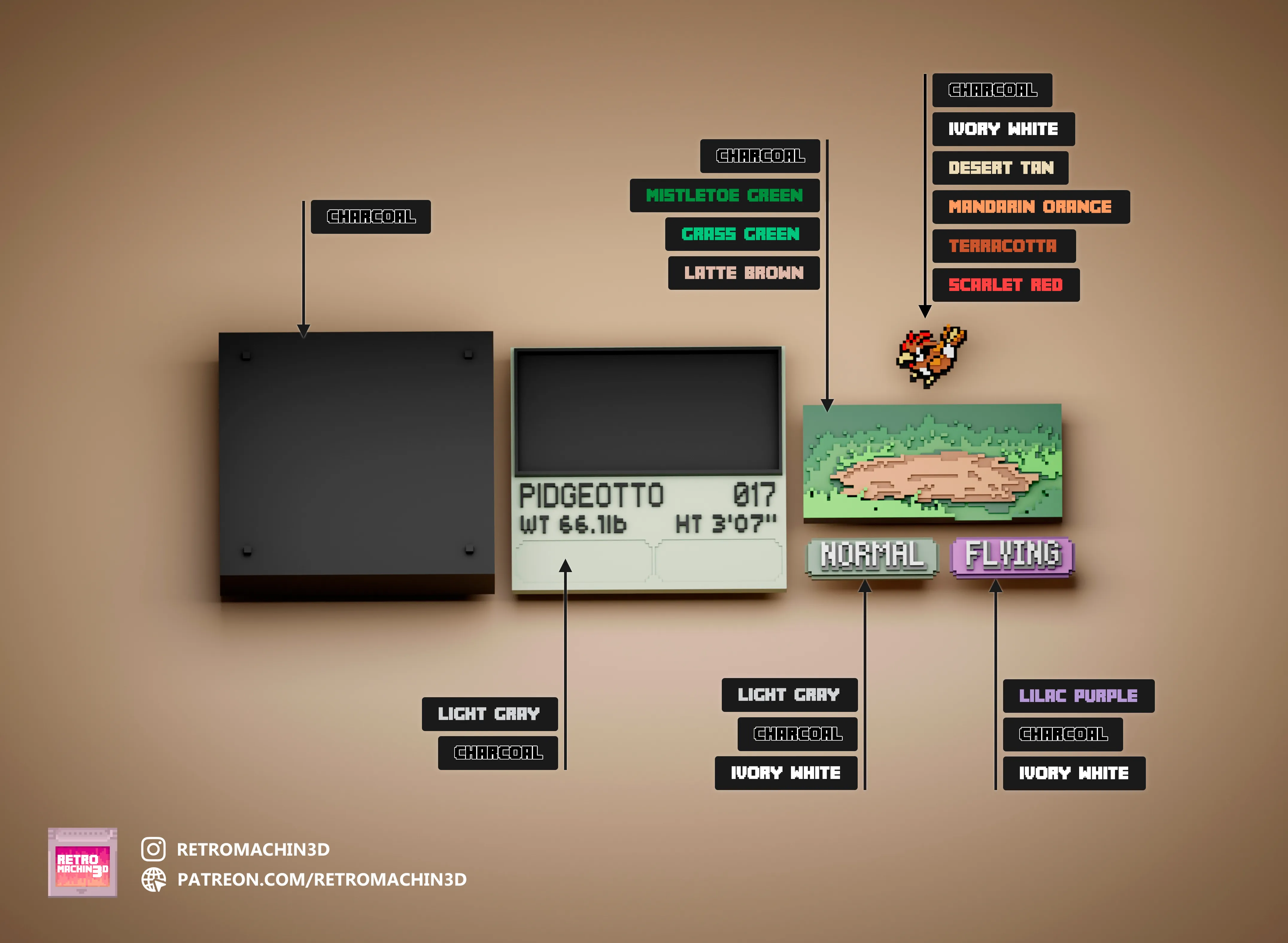

Part Printing Guides

Part 1: Background (BG Normal.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Basic Mistletoe Green
8	0.8mm	Swap to	Matte Charcoal
10	1.0mm	Swap to	Basic Mistletoe Green
16	1.6mm	Swap to	Matte Charcoal
19	1.9mm	Swap to	Matte Grass Green
23	2.3mm	Swap to	Matte Charcoal
26	2.6mm	Swap to	Matte Latte Brown
30	3.0mm	Swap to	Matte Charcoal
32	3.2mm	Final swap to	Matte Grass Green

---

Part 2: Normal Type (Normal.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Light Gray
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Basic Light Gray
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Flying Type (Flying.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lilac Purple
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Matte Lilac Purple
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Light Gray
25	2.5mm	Final swap to	Matte Charcoal

---

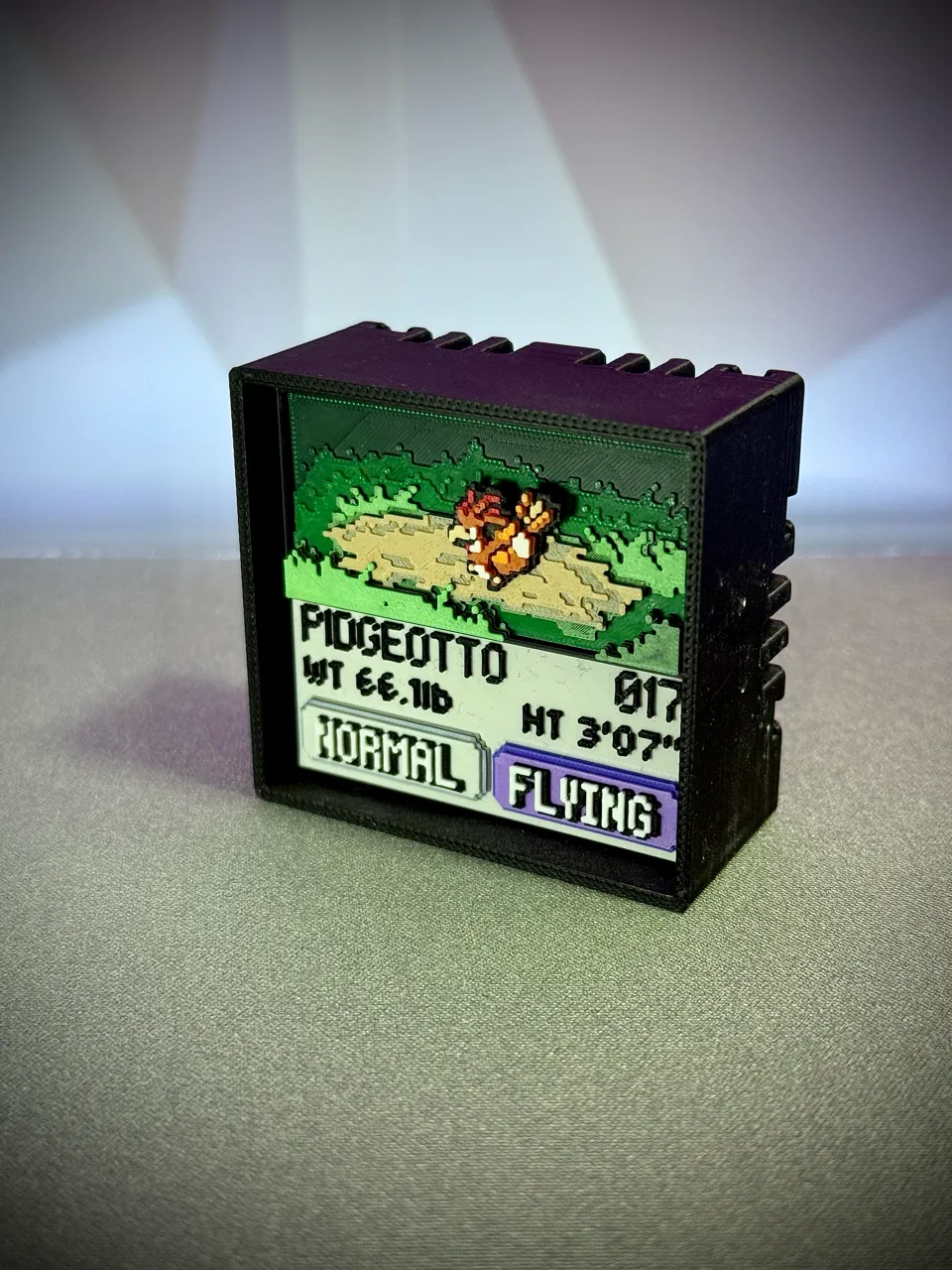

Part 5: Pokemon (017 Pidgeotto.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Matte Scarlet Red
10	1.0mm	Swap to	Matte Desert Tan
14	1.4mm	Swap to	Matte Terracotta
18	1.8mm	Swap to	Matte Mandarin Orange
22	2.2mm	Final swap to	Matte Ivory White
