General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (6 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Lemon Yellow	10
2	PLA Matte Terracotta	PLA Basic Gold	15
3	PLA Matte Mandarin Orange	—	—
4	PLA Matte Ivory White	—	—

Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slot 1 and 2
2. Set swap layers at Z=0.7mm (Layer 7) and Z=1.1mm (Layer 11)
3. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Electric.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
15	1.5mm	Swap to	Matte Latte Brown
17	1.7mm	Swap to	Matte Ivory White
23	2.3mm	Swap to	Matte Lemon Yellow
29	2.9mm	Swap to	Matte Charcoal
32	3.2mm	Final swap to	Matte Latte Brown

---

Part 2: First Type (Electric.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lemon Yellow
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Matte Lemon Yellow
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lemon Yellow
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

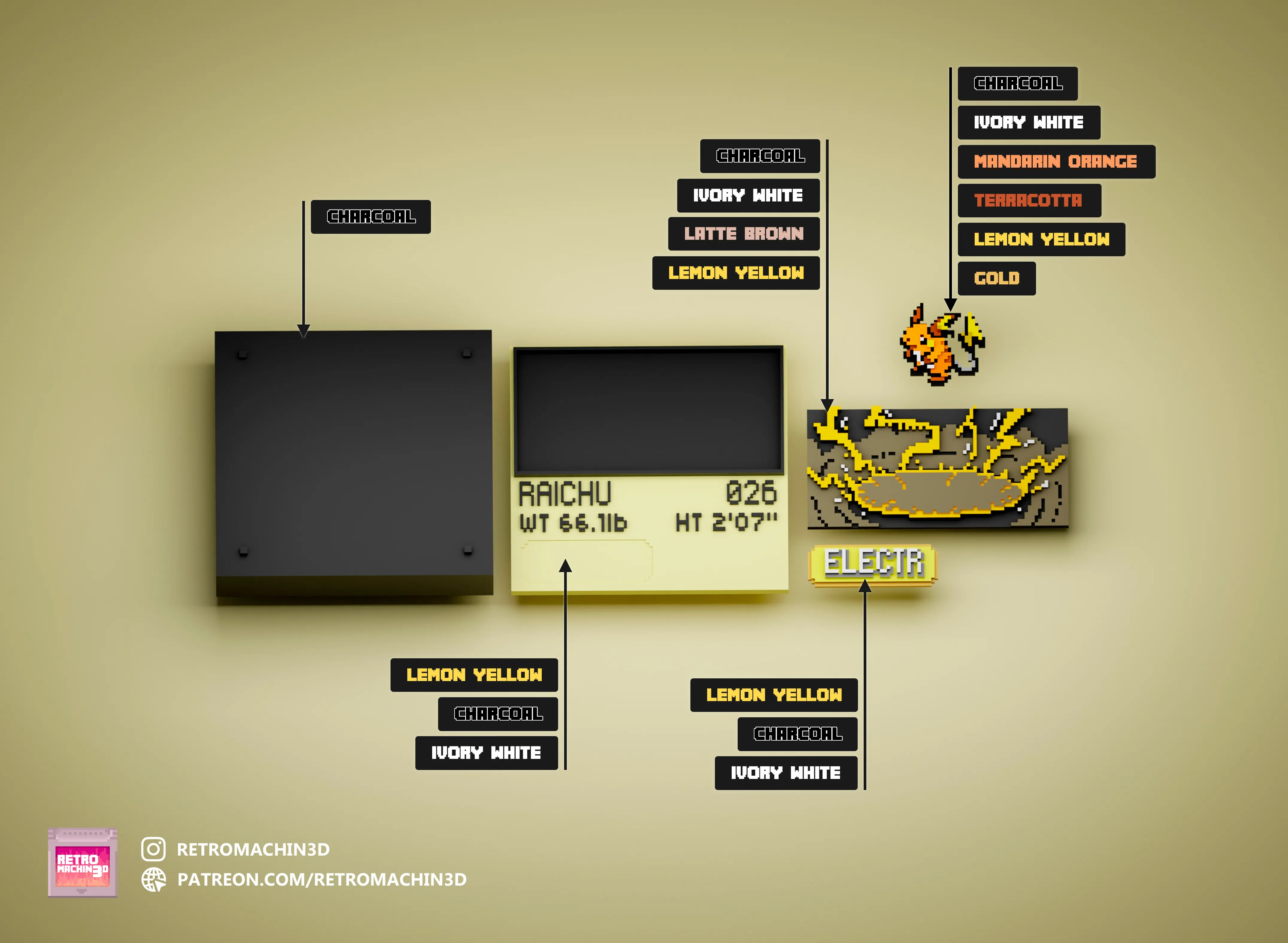

Part 4: Pokemon (026 Raichu.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
10	1.0mm	Swap to	Matte Ivory White
11	1.1mm	Swap to	Matte Terracotta
15	1.5mm	Swap to	Matte Mandarin Orange
22	2.2mm	Swap to	Matte Lemon Yellow
23	2.3mm	Swap to	Matte Ivory White
27	2.7mm	Swap to	Matte Lemon Yellow
31	3.1mm	Final swap to	Basic Gold
