General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (5 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Lemon Yellow	9
2	PLA Matte Ivory White	—	—
3	PLA Matte Dark Brown	—	—
4	PLA Basic Gold	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Ground.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Sky Blue
9	0.9mm	Swap to	Matte Dark Brown
19	1.9mm	Swap to	Matte Caramel
27	2.7mm	Final swap to	Matte Latte Brown

---

Part 2: First Type (Ground.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Caramel
10	1.0mm	Swap to	Matte Latte Brown
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Desert Tan
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

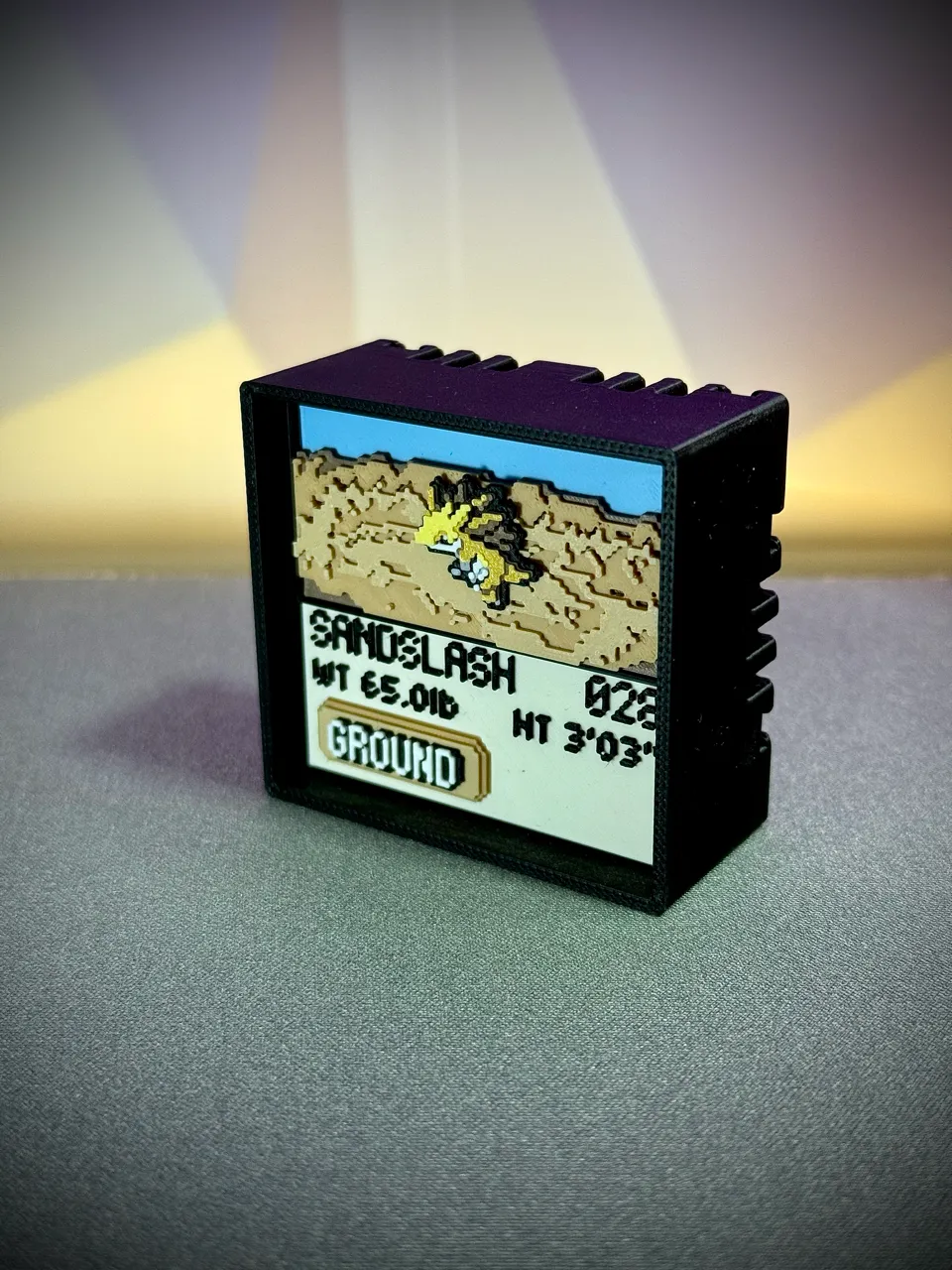

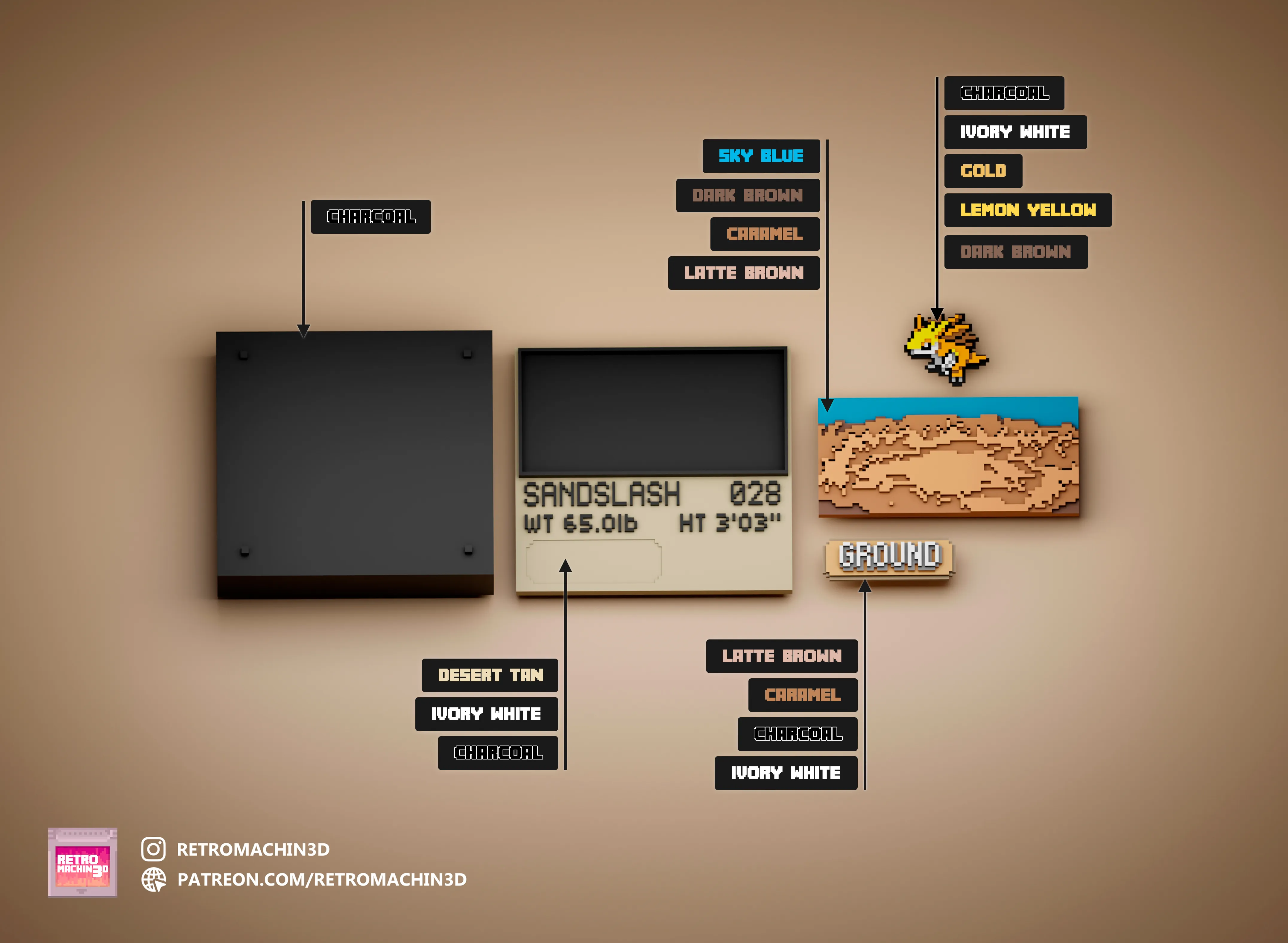

Part 4: Pokemon (028 Sandslash.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
9	0.9mm	Swap to	Matte Ivory White
13	1.3mm	Swap to	Matte Dark Brown
16	1.6mm	Swap to	Basic Gold
19	1.9mm	Final swap to	Matte Lemon Yellow
