General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (7 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Scarlet Red	7
2	PLA Basic Dark Gray	PLA Matte Sky Blue	10
3	PLA Matte Nardo Gray	PLA Matte Marine Blue	13
4	PLA Matte Ivory White	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

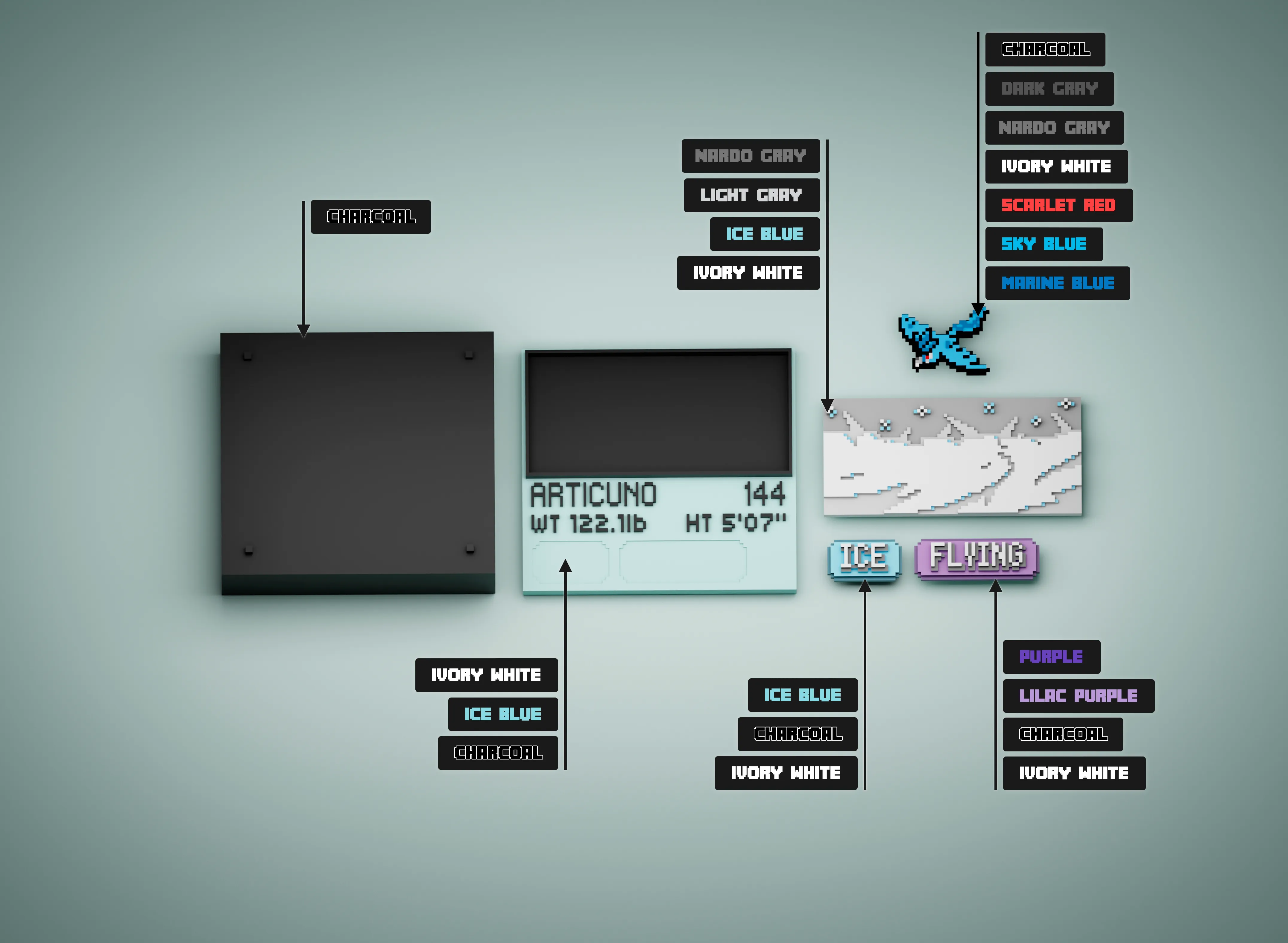

Part Printing Guides

Part 1: Fire Background (BG Ice.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Nardo Gray
14	1.4mm	Swap to	Basic Light Gray
15	1.5mm	Swap to	Matte Ice Blue
19	1.9mm	Final swap to	Matte Ivory White

---

Part 2: Water Type (Ice.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Ice Blue
7	0.7mm	Swap to	Matte Charcoal
8	0.8mm	Swap to	Matte Ice Blue
16	1.6mm	Swap to	Matte Charcoal
22	2.2mm	Final swap to	Matte Ivory White

---

Part 3: Flying Type (Flying.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Purple
10	1.0mm	Swap to	Matte Lilac Purple
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Ice Blue
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 5: Pokemon (144 Articuno.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Basic Dark Gray
10	1.0mm	Swap to	Matte Nardo Gray
13	1.3mm	Swap to	Matte Ivory White
17	1.7mm	Swap to	Matte Scarlet Red
19	1.9mm	Swap to	Matte Sky Blue
22	2.2mm	Final swap to	Matte Marine Blue
