General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (5 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Lemon Yellow	6
2	PLA Matte Ivory White	—	—
3	PLA Basic Dark Gray	—	—
4	PLA Matte Mandarin Orange	—	—

Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slot 1
2. Set swap layers at Z=0.6mm (Layer 6)
3. Replace the filament in the shared slot without pausing the print.

---

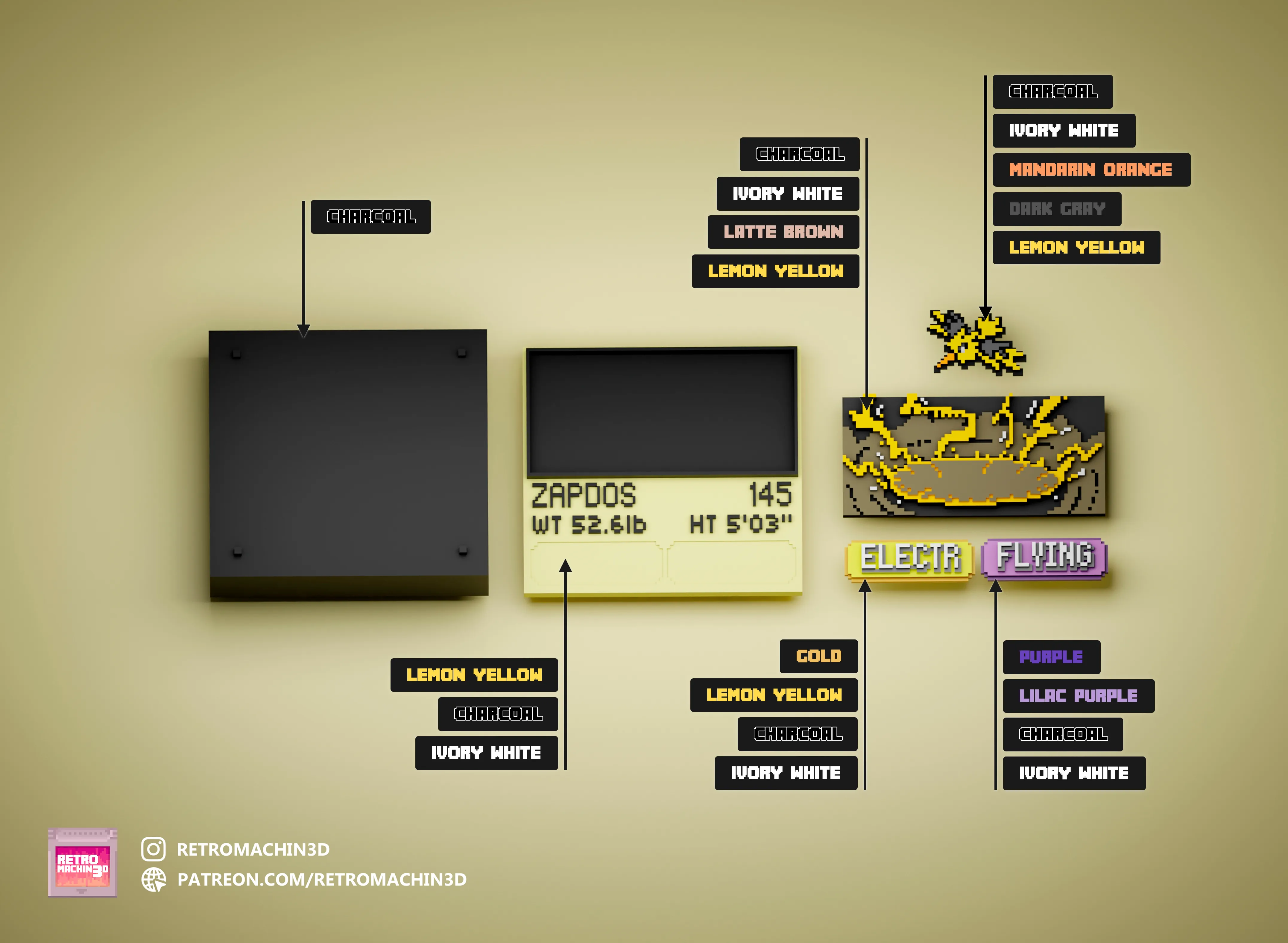

Part Printing Guides

Part 1: Background (BG Electric.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
15	1.5mm	Swap to	Matte Latte Brown
17	1.7mm	Swap to	Matte Ivory White
23	2.3mm	Swap to	Matte Lemon Yellow
29	2.9mm	Swap to	Matte Charcoal
32	3.2mm	Final swap to	Matte Latte Brown

---

Part 2: First Type (Electric.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Gold
10	1.0mm	Swap to	Matte Lemon Yellow
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: (Flying.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Purple
10	1.0mm	Swap to	Matte Lilac Purple
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Lemon Yellow
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 5: Pokemon (145 Zapdos.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Matte Ivory White
10	1.0mm	Swap to	Basic Dark Gray
13	1.3mm	Swap to	Matte Mandarin Orange
16	1.6mm	Final swap to	Matte Lemon Yellow
