General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (7 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Apple Green	PLA Matte Sakura Pink	6
2	PLA Matte Charcoal	PLA Basic Gold	10
3	PLA Basic Mistletoe Green	PLA Matte Lemon Yellow	13
4	PLA Basic Bambu Green	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

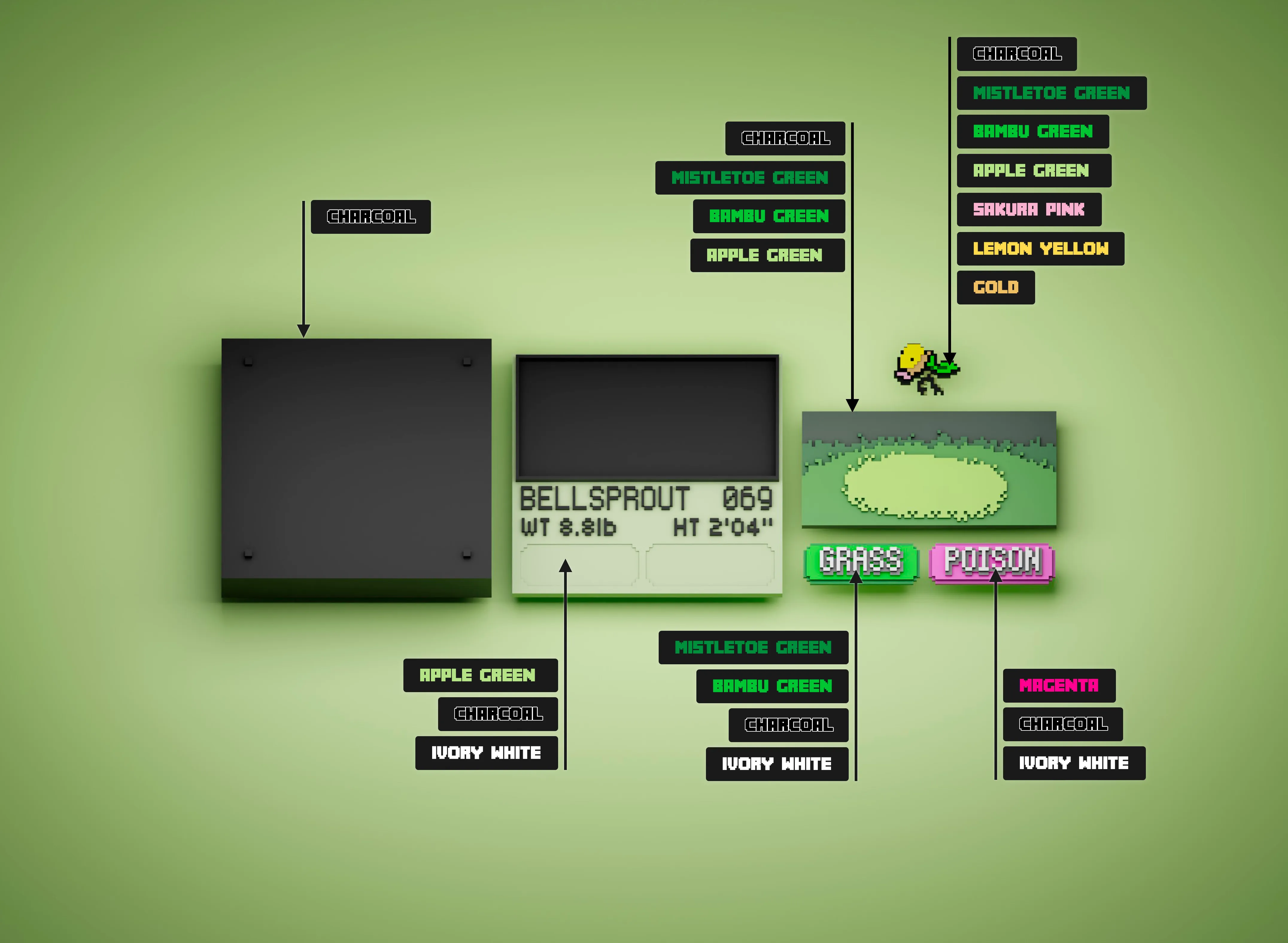

Part Printing Guides

Part 1: Background (BG Grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
8	0.8mm	Swap to	Basic Mistletoe Green
15	1.5mm	Swap to	Basic Bambu Green
22	2.2mm	Final swap to	Matte Apple Green

---

Part 2: First Type (Grass.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Mistletoe Green
10	1.0mm	Swap to	Basic Bambu Green
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Second Type (Poison.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Magenta
8	0.8mm	Swap to	Matte Charcoal
9	0.9mm	Swap to	Basic Magenta
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Apple Green
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 5: Pokemon (069 Bellsprout.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
4	0.4mm	Swap to	Matte Apple Green
6	0.6mm	Swap to	Matte Charcoal
10	1.0mm	Swap to	Basic Mistletoe Green
13	1.3mm	Swap to	Basic Bambu Green
16	1.6mm	Swap to	Matte Sakura Pink
19	1.9mm	Swap to	Basic Gold
22	2.2mm	Final swap to	Matte Lemon Yellow
