General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (6 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Ivory White	PLA Basic Gold	10
2	PLA Matte Scarlet Red	PLA Matte Lemon Yellow	13
3	PLA Matte Charcoal	—	—
4	PLA Matte Lilac Purple	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

Part Printing Guides

Part 1: Background (BG Fight.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
9	0.9mm	Swap to	Matte Dark Brown
14	1.4mm	Swap to	Matte Caramel
19	1.9mm	Swap to	Matte Ivory White
23	2.3mm	Swap to	Matte Scarlet Red
28	2.8mm	Swap to	Matte Dark Brown
32	3.2mm	Final swap to	Matte Caramel

---

Part 2: First Type (Fight.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Plum
10	1.0mm	Swap to	Matte Dark Red
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Desert Tan
25	2.5mm	Final swap to	Matte Charcoal

---

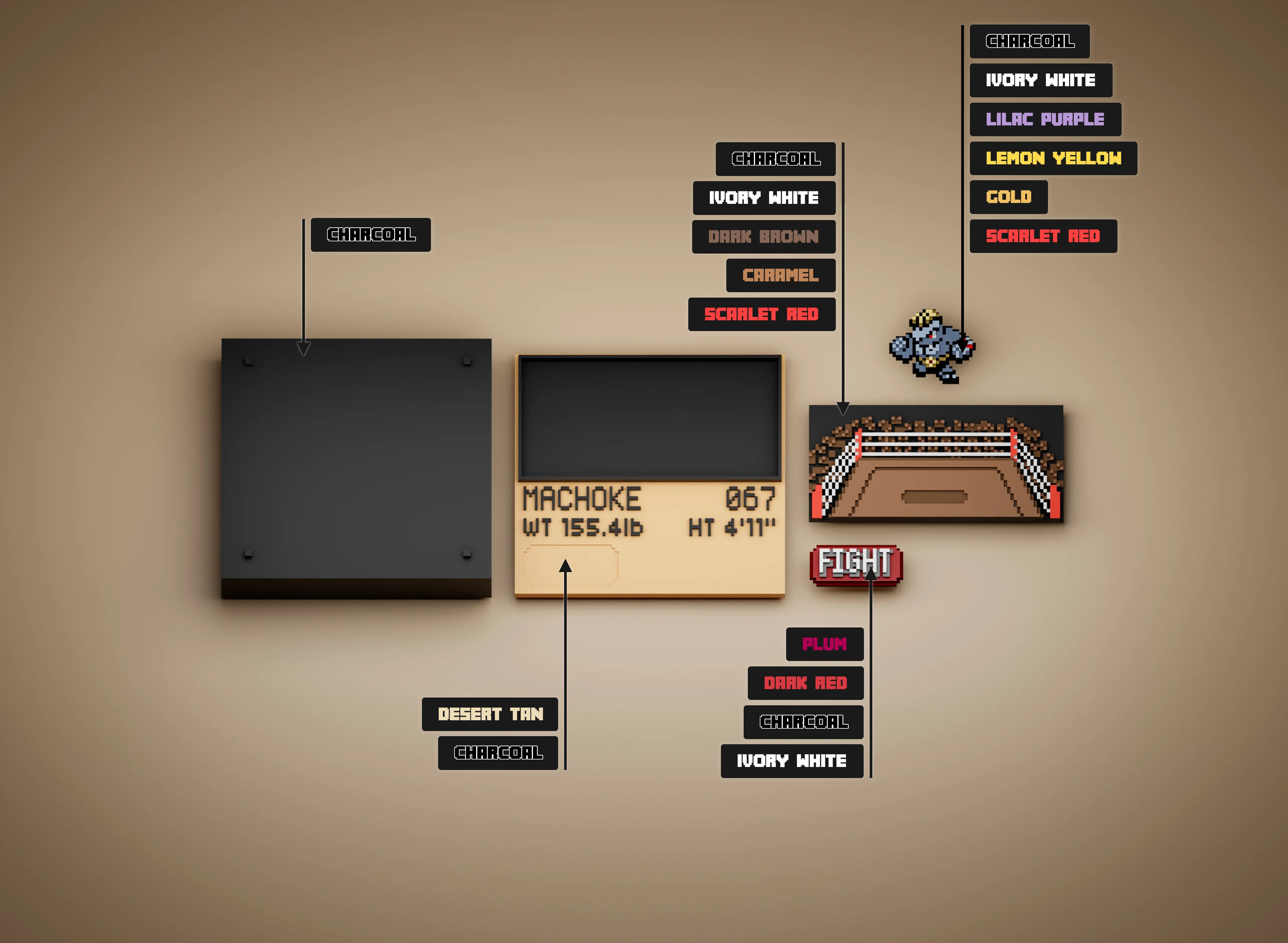

Part 4: Pokemon (067 Machoke.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Matte Ivory White
10	1.0mm	Swap to	Matte Scarlet Red
13	1.3mm	Swap to	Matte Charcoal
15	1.5mm	Swap to	Matte Lilac Purple
19	1.9mm	Swap to	Basic Gold
22	2.2mm	Final swap to	Matte Lemon Yellow
