General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization

---

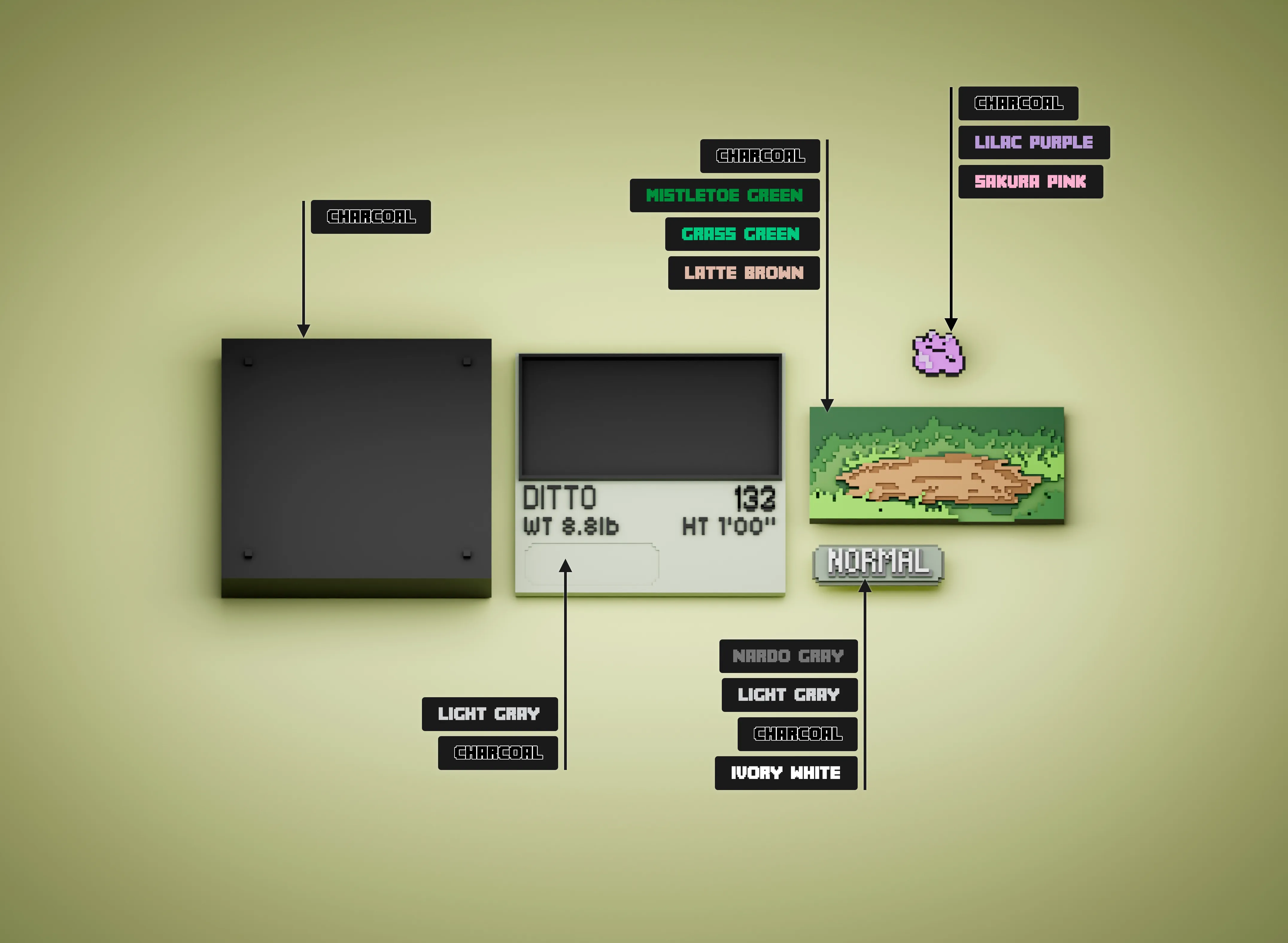

Part Printing Guides

Part 1: Background (BG Normal.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
7	0.7mm	Swap to	Basic Mistletoe Green
8	0.8mm	Swap to	Matte Charcoal
10	1.0mm	Swap to	Basic Mistletoe Green
16	1.6mm	Swap to	Matte Charcoal
19	1.9mm	Swap to	Matte Grass Green
23	2.3mm	Swap to	Matte Charcoal
26	2.6mm	Swap to	Matte Latte Brown
30	3.0mm	Swap to	Matte Charcoal
32	3.2mm	Final swap to	Matte Grass Green

---

Part 2: First Type (Normal.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Nardo Gray
10	1.0mm	Swap to	Basic Light Gray
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Light Gray
25	2.5mm	Final swap to	Matte Charcoal

---

Part 4: Pokemon (132 Ditto.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Matte Lilac Purple
10	1.0mm	Final swap to	Matte Sakura Pink
