General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (8 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Matte Charcoal	PLA Matte Scarlet Red	6
2	PLA Matte Nardo Gray	PLA Basic Gold	10
3	PLA Matte Ivory White	PLA Matte Sky Blue	14
4	PLA Matte Desert Tan	PLA Matte Marine Blue	16
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

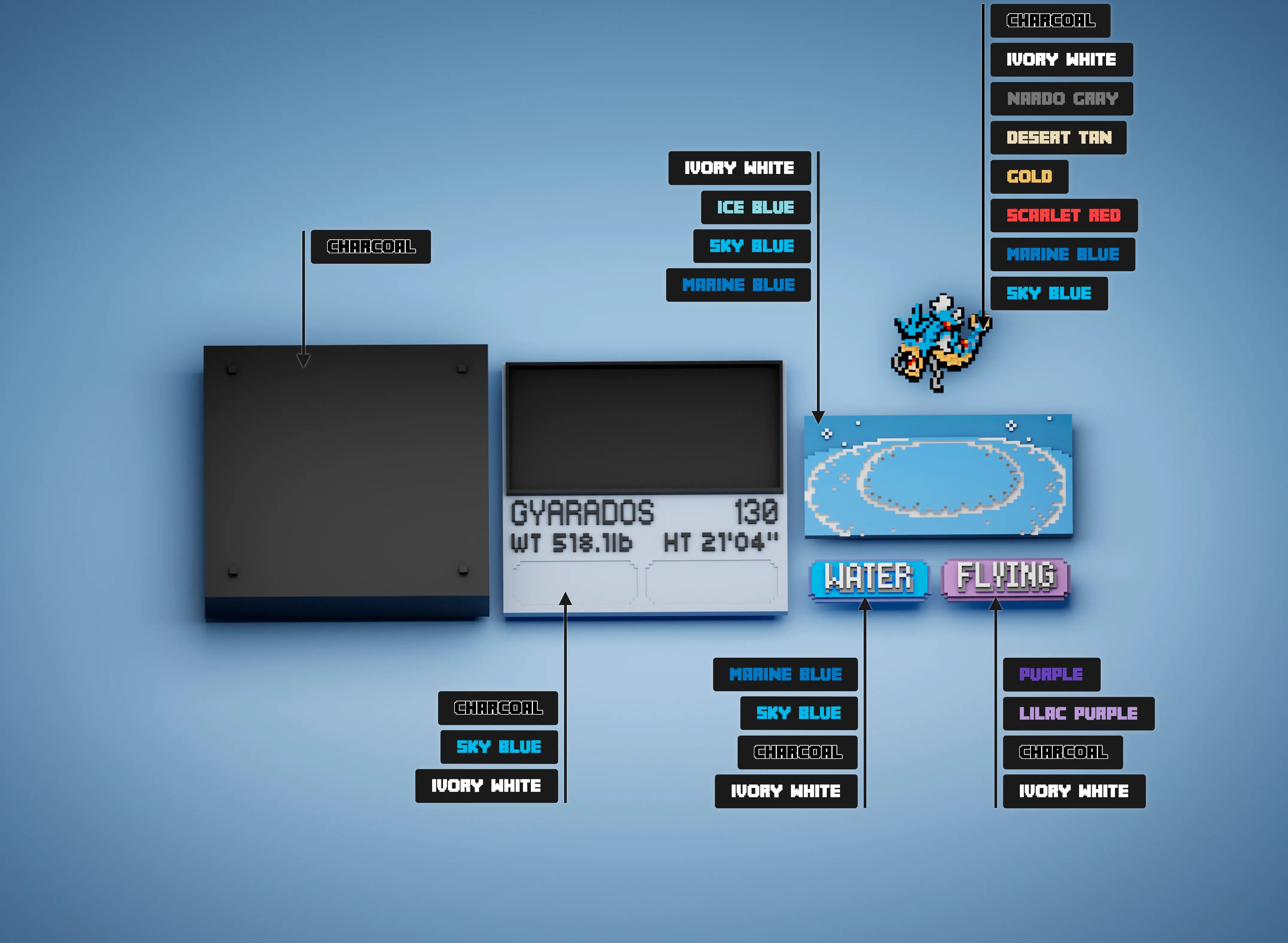

Part Printing Guides

Part 1: Fire Background (BG Water.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Marine Blue
9	0.9mm	Swap to	Matte Ivory White
15	1.5mm	Swap to	Matte Sky Blue
21	2.1mm	Final swap to	Matte Ice Blue

---

Part 2: Water Type (Water.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Marine Blue
10	1.0mm	Swap to	Matte Sky Blue
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Flying Type (Flying.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Basic Purple
10	1.0mm	Swap to	Matte Lilac Purple
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 4: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Sky Blue
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

Part 5: Pokemon (130 Gyarados.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Matte Nardo Gray
10	1.0mm	Swap to	Matte Ivory White
14	1.4mm	Swap to	Matte Desert Tan
16	1.6mm	Swap to	Matte Scarlet Red
18	1.8mm	Swap to	Basic Gold
22	2.2mm	Swap to	Matte Sky Blue
25	2.5mm	Final swap to	Matte Marine Blue
