General Print Settings

Applicable to all parts unless specified otherwise:

• Layer Height: 0.1mm
• Nozzle Diameter: 0.2mm
• Infill: 100% (recommended for durability)
• Materials: PLA or compatible filament

---

Color Change Setup

For BambuStudio Users

✅ Pre-configured Solution:

• Use included .3mf file with:
  • Automatic color swaps
  • Optimized AMS slot assignments
  • Layer-specific Z-height adjustments

For Other Slicers

🔧 Manual Configuration:

1. Import individual STL files
2. Set color changes using layer/Z-height tables below
3. Enable purge towers for clean transitions

---

AMS Slot Optimization (7 Colors in 4 Slots)

Shared Slot Configuration

Slot	Initial Filament	Swap Filament	Swap Layer
1	PLA Basic Dark Gray	PLA Matte Mandarin Orange	10
2	PLA Matte Ivory White	PLA Matte Sakura Pink	16
3	PLA Matte Scarlet Red	PLA Matte Lemon Yellow	19
4	PLA Matte Charcoal	—	—
Implementation Steps:

1. In Bambu Studio: Assign both colors to shared slots
2. Replace the filament in the shared slot without pausing the print.

---

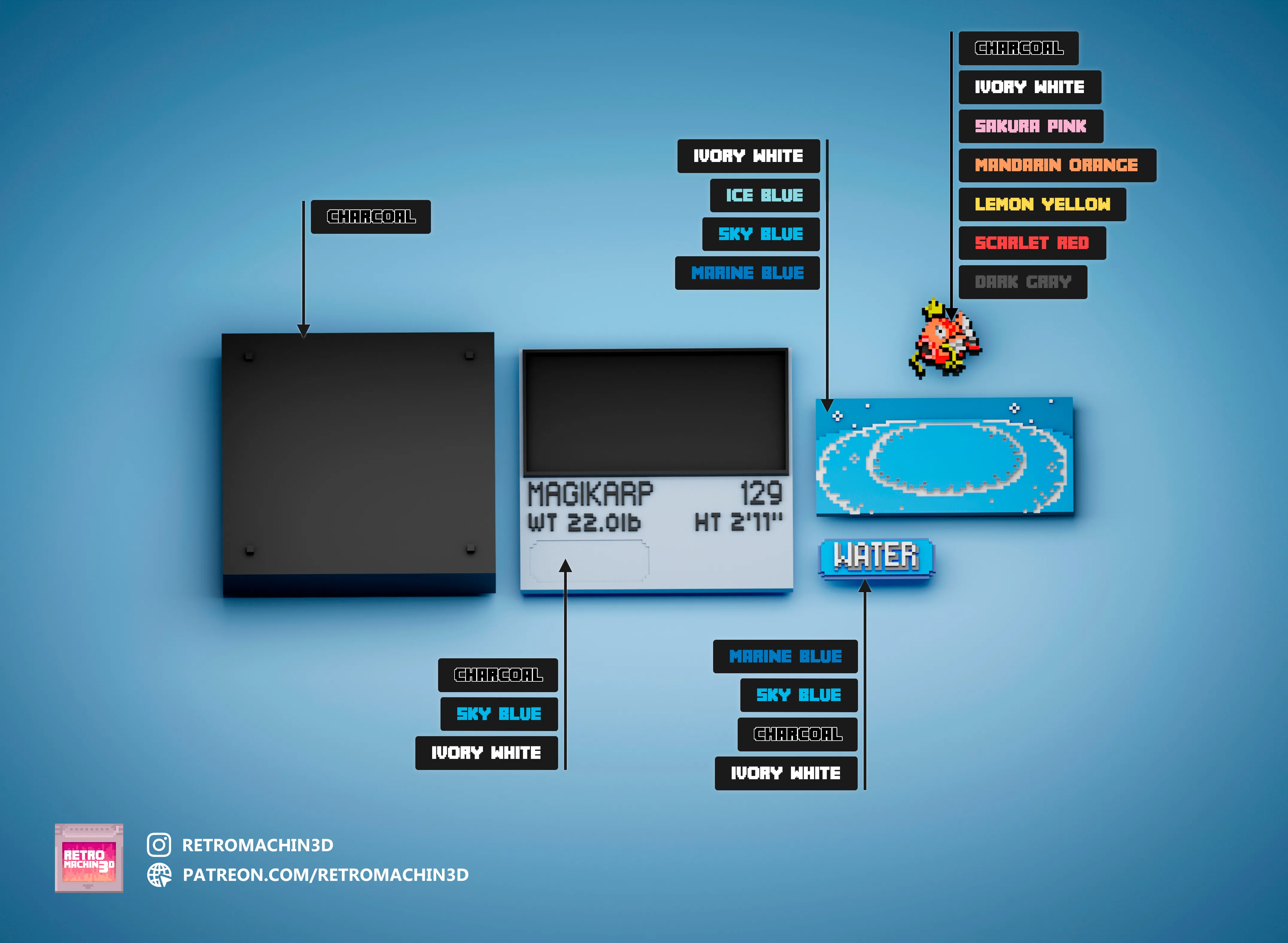

Part Printing Guides

Part 1: Fire Background (BG Water.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Marine Blue
9	0.9mm	Swap to	Matte Ivory White
15	1.5mm	Swap to	Matte Sky Blue
21	2.1mm	Final swap to	Matte Ice Blue

---

Part 2: Water Type (Water.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Marine Blue
10	1.0mm	Swap to	Matte Sky Blue
16	1.6mm	Swap to	Matte Charcoal
23	2.3mm	Final swap to	Matte Ivory White

---

Part 3: Info Screen (InfoScreen.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Sky Blue
24	2.4mm	Swap to	Matte Ivory White
25	2.5mm	Final swap to	Matte Charcoal

---

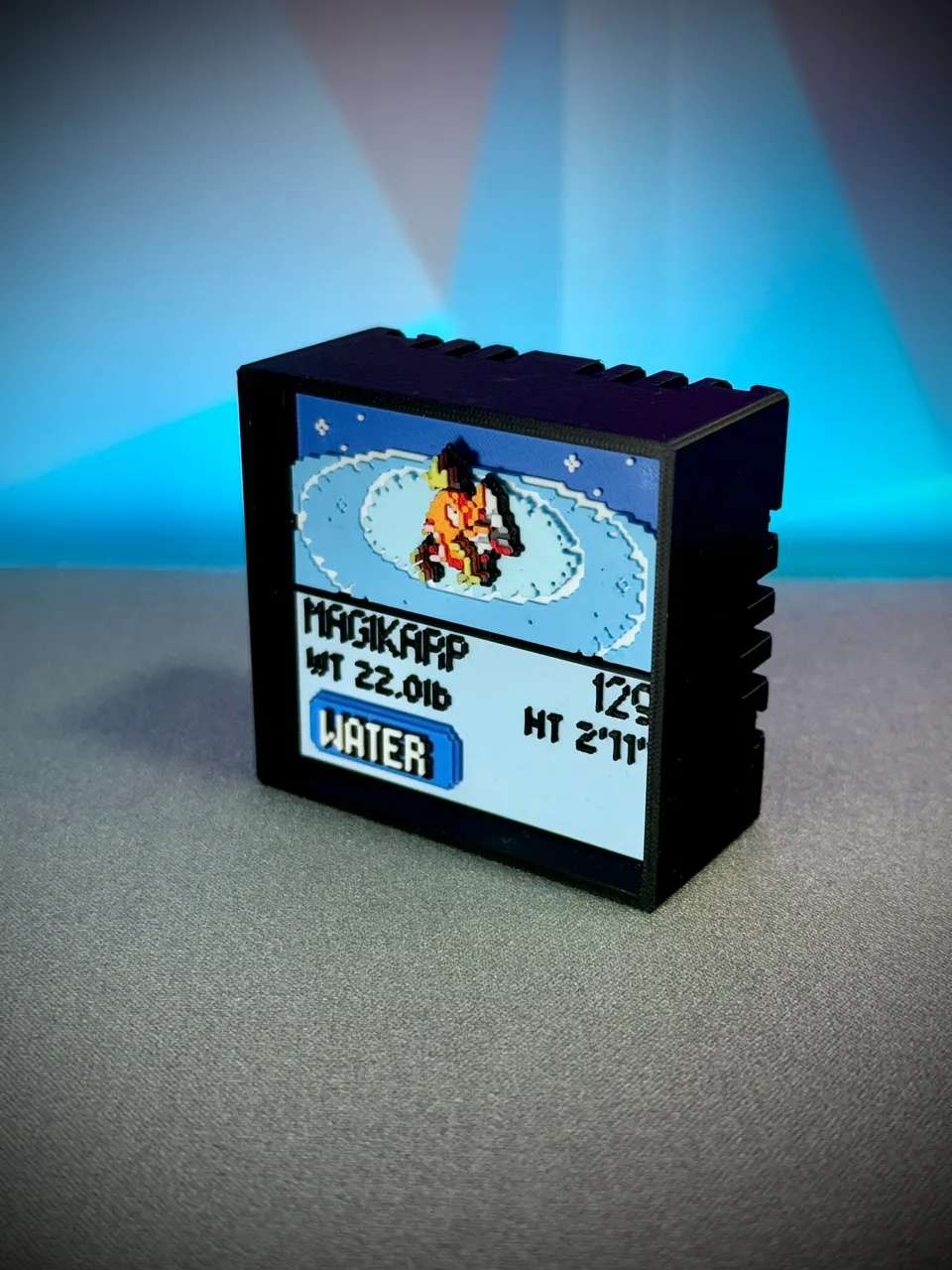

Part 4: Pokemon (129 Magikarp.stl)

Layer	Z-Height	Action	Filament
0	0.0mm	Start print with	Matte Charcoal
6	0.6mm	Swap to	Basic Dark Gray
10	1.0mm	Swap to	Matte Charcoal
12	1.2mm	Swap to	Matte Ivory White
16	1.6mm	Swap to	Matte Scarlet Red
19	1.9mm	Swap to	Matte Mandarin Orange
23	2.3mm	Swap to	Matte Sakura Pink
26	2.6mm	Swap to	Matte Charcoal
28	2.8mm	Final swap to	Matte Lemon Yellow
